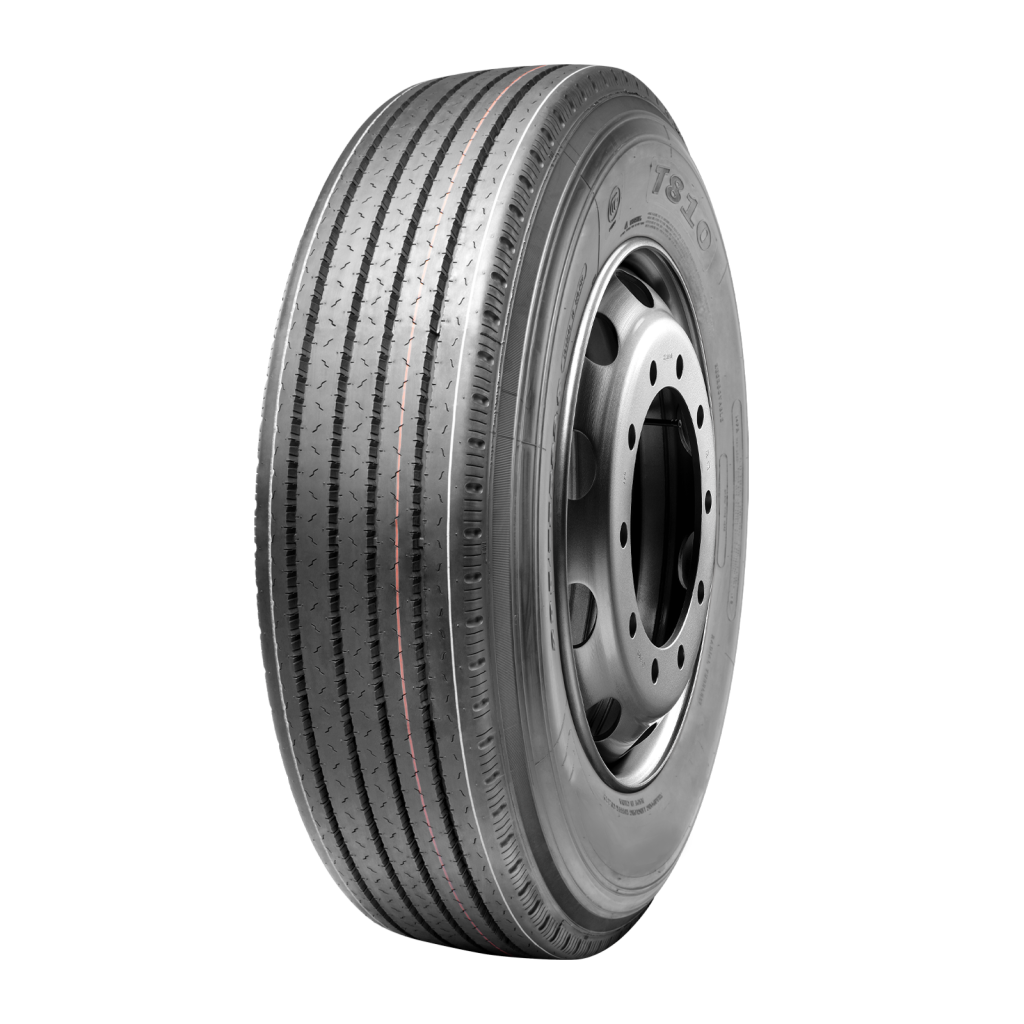

PRODUCT RANGE T810
| Size | Ply Rating | Load Index | Speed Symbols | Standard Rim | Max Load and Inflated Pressure | Overall Diameter (in) | Section Width (in) | Tread Depth (32nds) | Operation Norm | |||
| Dual | Single | |||||||||||
| lbs | psi | lbs | psi | |||||||||
| 11R22.5 | 14 | 144/142 | M | 8.25 | 5840 | 105 | 6175 | 105 | 41.50 | 10.98 | 13.5 | TRA |
| 11R22.5 | 16 | 146/143 | M | 8.25 | 6005 | 120 | 6610 | 120 | 41.50 | 10.98 | 13.5 | TRA |
| 11R24.5 | 14 | 146/143 | M | 8.25 | 6005 | 105 | 6610 | 105 | 43.46 | 10.98 | 13.5 | TRA |
| 11R24.5 | 16 | 149/146 | M | 8.25 | 6610 | 120 | 7160 | 120 | 43.46 | 10.98 | 13.5 | TRA |
| 255/70R22.5 | 16 | 140/137 | M | 7.50 | 5070 | 120 | 5510 | 120 | 36.61 | 10.04 | 13.5 | TRA |
| 285/75R24.5 | 14 | 144/141 | M | 8.25 | 5675 | 110 | 6175 | 110 | 41.34 | 11.14 | 13.5 | TRA |
| 285/75R24.5 | 16 | 147/144 | M | 8.25 | 6175 | 120 | 6780 | 120 | 41.34 | 11.14 | 13.5 | TRA |
| 295/75R22.5 | 14 | 144/141 | M | 9.00 | 5675 | 110 | 6175 | 110 | 39.92 | 11.73 | 13.5 | TRA |
| 295/75R22.5 | 16 | 146/143 | M | 9.00 | 6005 | 120 | 6610 | 120 | 39.92 | 11.73 | 13.5 | TRA |
