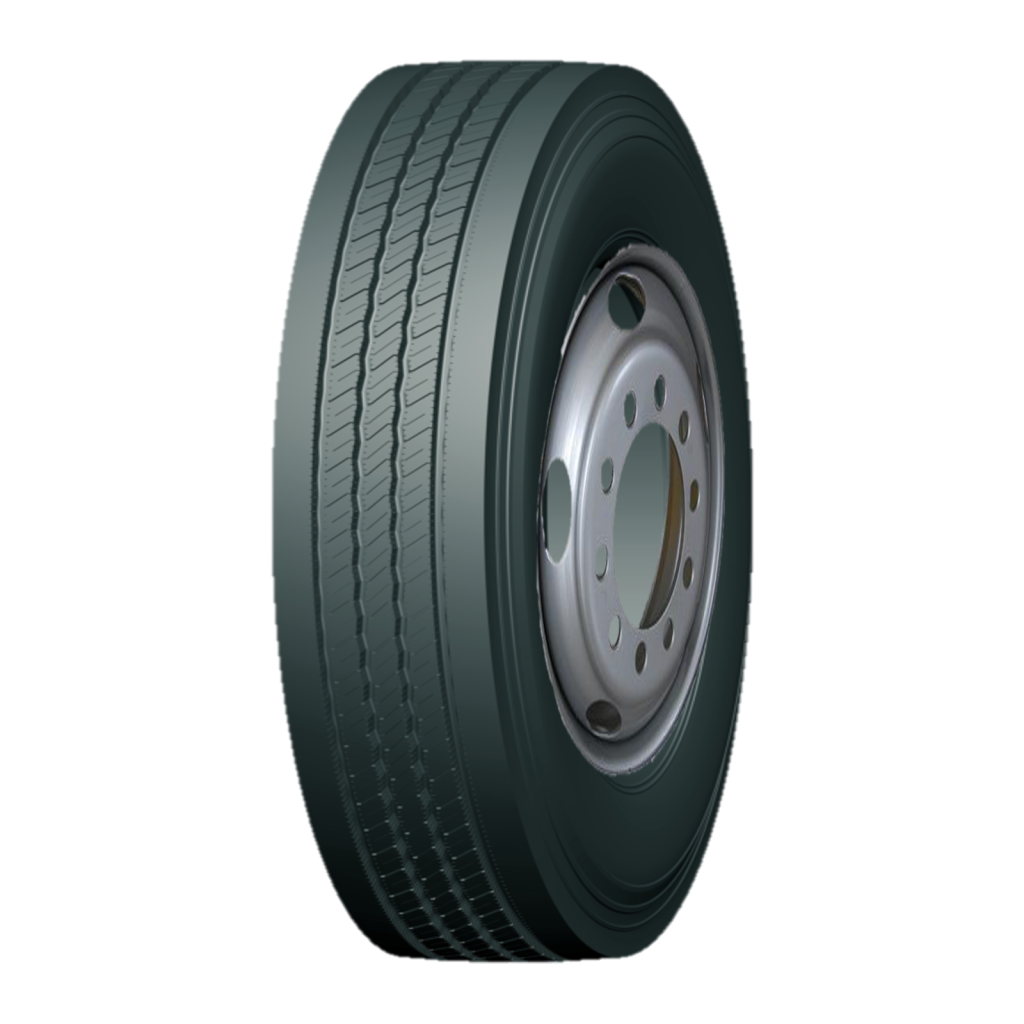

KTA20

Regional /All-position

Buy Now

WHY CHOOSE THIS TIRE

Straight five-rib tread design with four grooves inhibits stone retention, promotes even wear and provides a smooth ride, improved handling and superior wet traction

Wide shoulder ribs reduce shoulder step wear

Each size is manufactured with a specially tread depth to meet a greater range of application

Micro sipes protect the interior ribs from punch wear

Low rolling resistance

Optimized the footprint for long and even wear

PRODUCT RANGE KTA20

Size Load index&Speed symbols PR Load Range Max load and Max Air (lbs&psi) Overall Diameter in inches Section Width in inches Tread Depth (in 32nds)
Dual Single
lbs psi lbs psi
11R22.5 144/142L 14 G 5840 105 6175 105 42 11 19
11R22.5 146/143L 16 H 6005 120 6610 120 42 11 19
295/75R22.5 144/141L 14 G 5675 110 6175 110 40 12 19
295/75R22.5 146/143L 16 H 6005 120 6610 120 40 12 19
11R24.5 146/143L 14 G 6005 105 6610 105 43 11 19
11R24.5 149/146L 16 H 6610 120 7160 120 43 11 19
285/75R24.5 144/141L 14 G 5675 110 6175 110 41 11 19
285/75R24.5 147/144L 16 H 6175 120 6780 120 41 11 19
